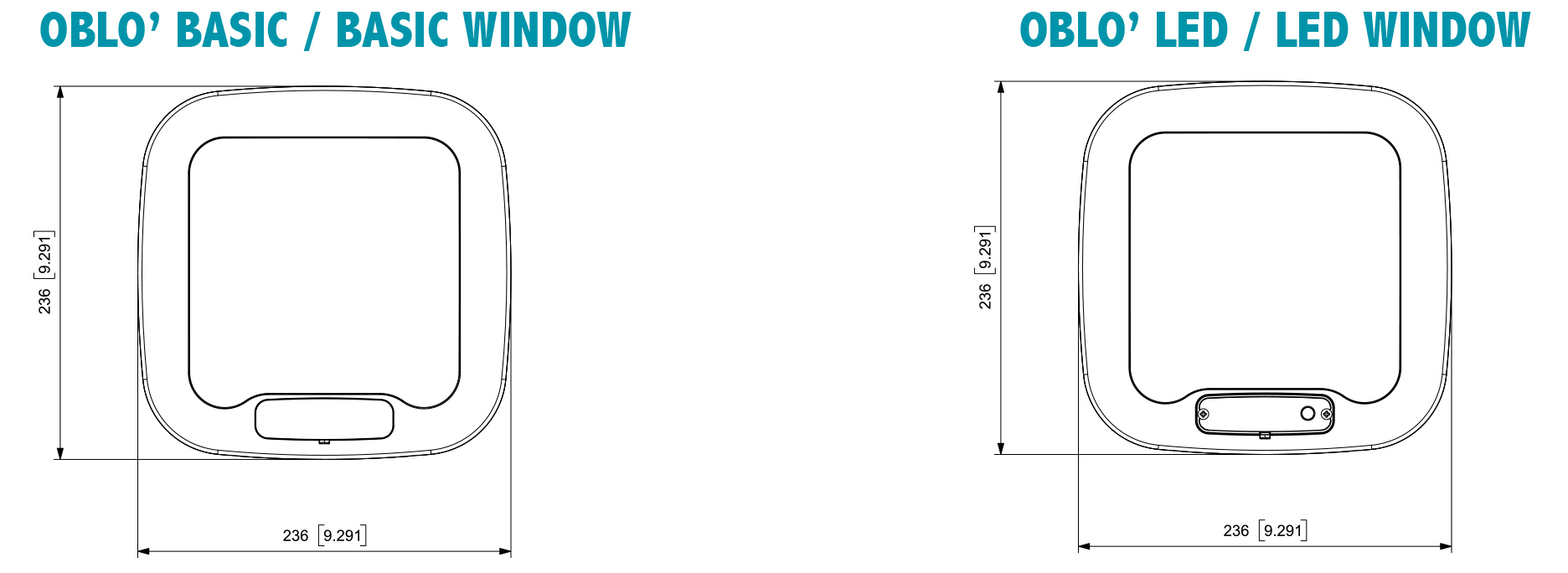

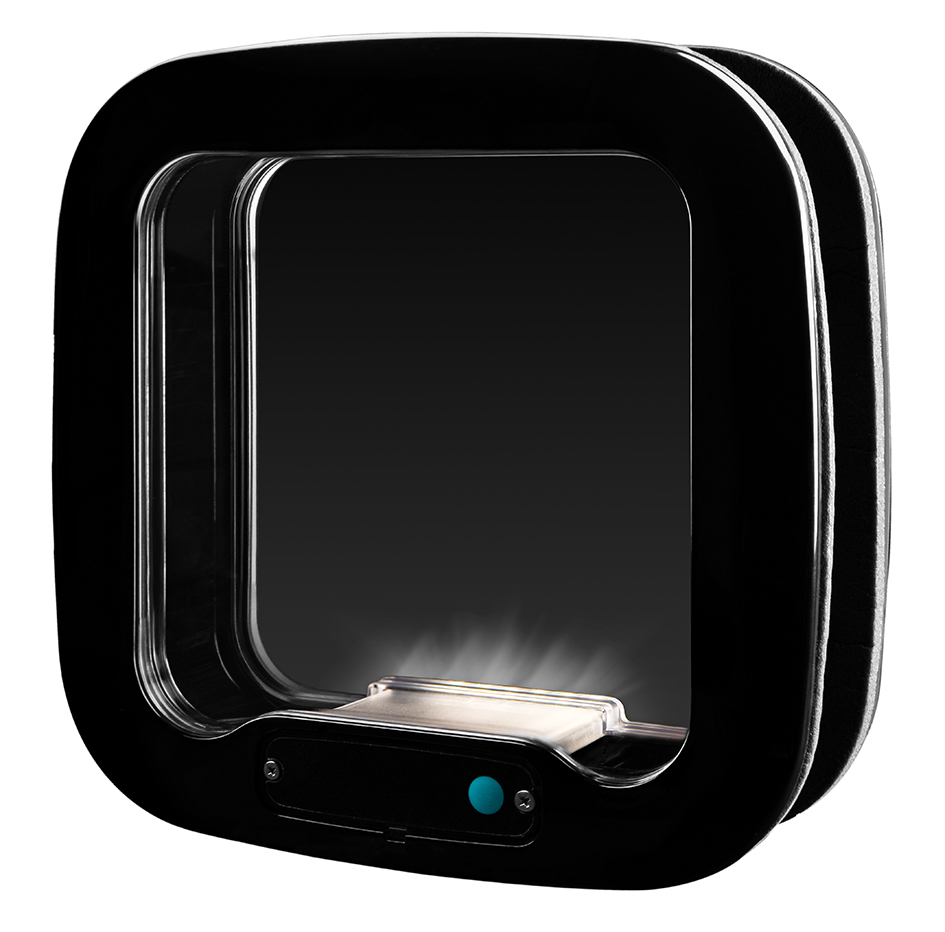

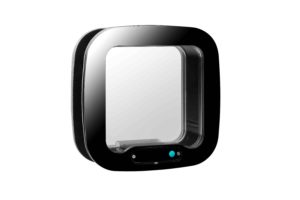

Square Window Serie OBP.Q

The new Enginia square inspection window completes the range of windows for air handling units and has been developed to meet the need of interior lighting in small-medium size AHU, with not practicable doors.

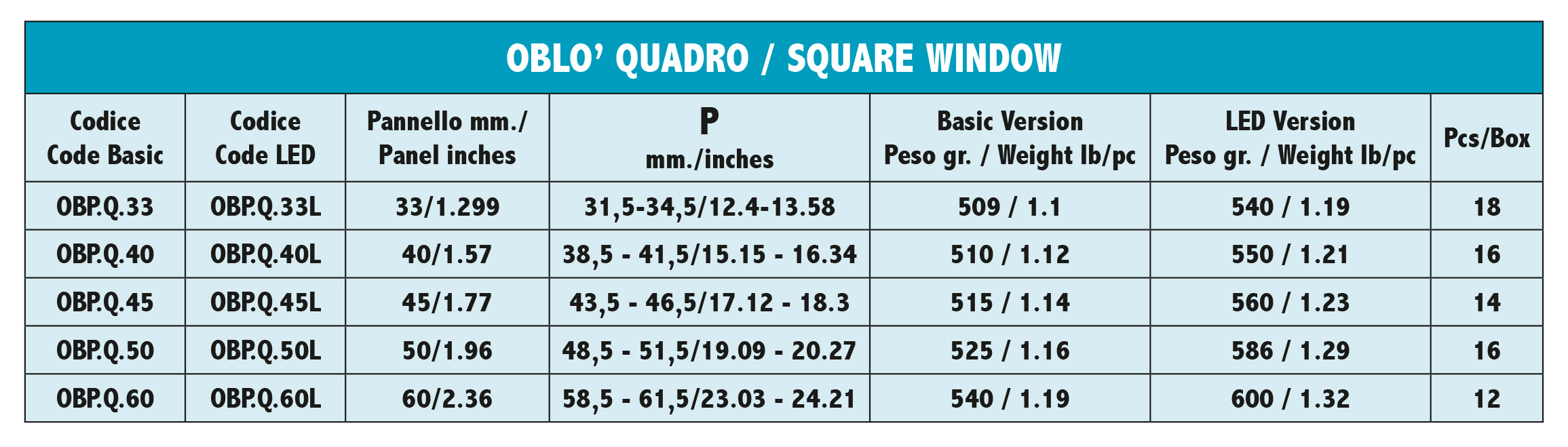

The lighting element in the inspection window avoids the ineed to install classic inspection light, enabling a significant cost savings. Suitable for hygienic applications according to the standard VDI 6022. Available thickness: 33, 40, 45, 50 , 60 mm (1.3, 1.5, 1.75, 2, 2.4 in.)

  • Led light with high intensity and excellent distance
  • Simple installation without any wiring

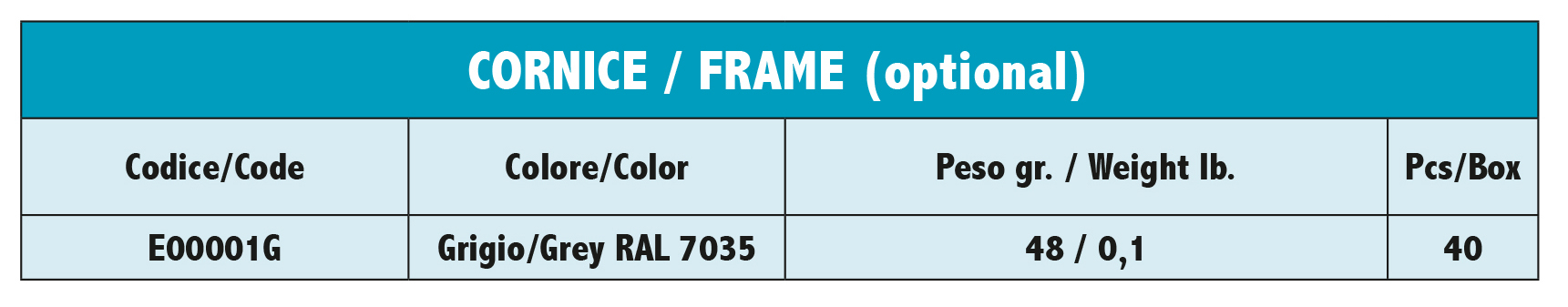

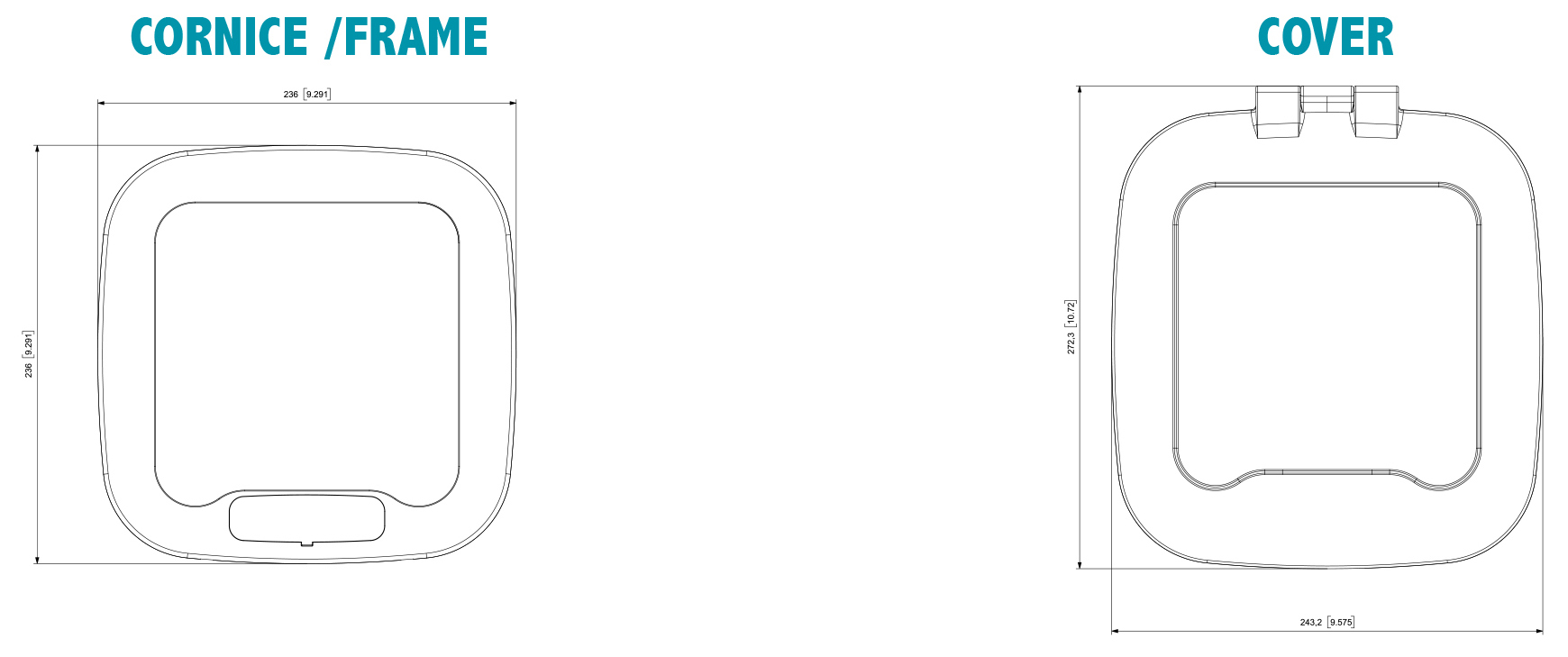

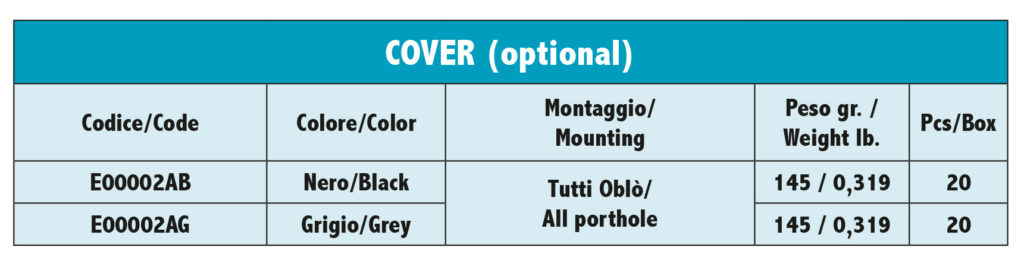

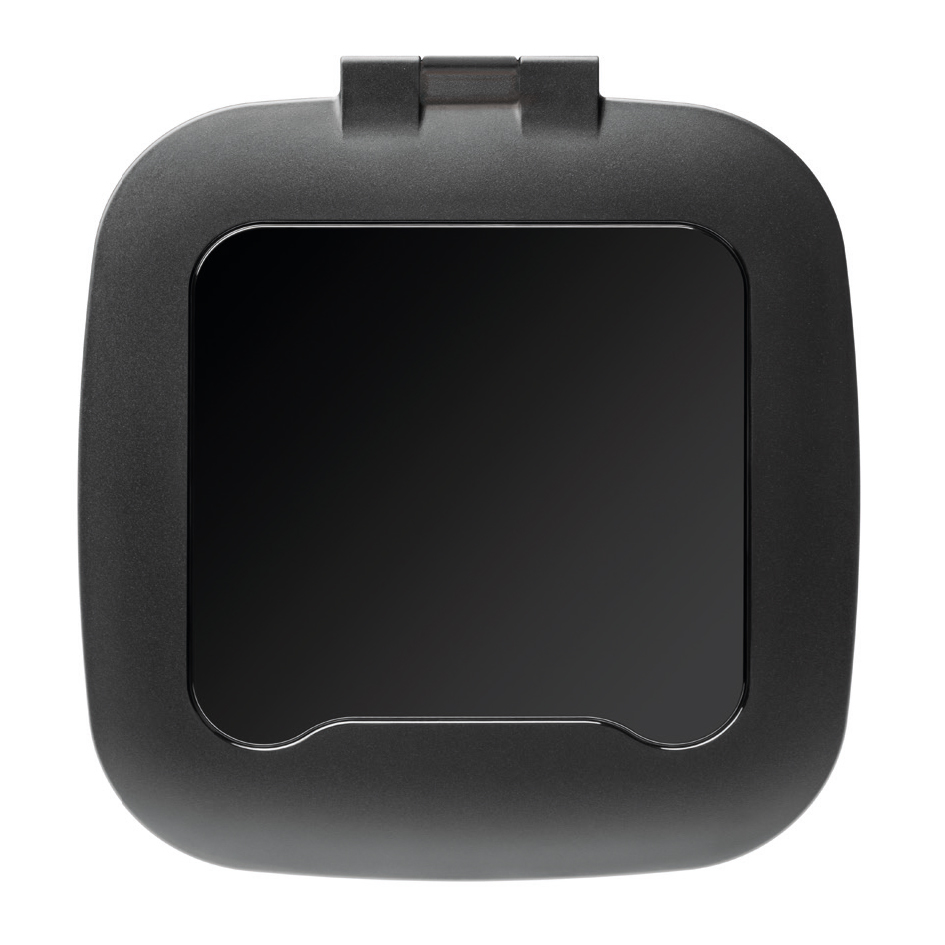

  • Frame covering the screws, in standard colors black and grey or custom
